Warm Air Transfer Systems

Use the excess capacity of your heating appliance to warm other rooms in your home.

Warm-Air-Transfer

Move Heat where its needed

An average size lounge requires 2-4kW of heating, yet heating appliances such as log burners can generate lO-20kW. That's 5 times the amount of heat required for a lounge room. This leaves an excess of 8-16kW of heat available to warm other rooms in your home. Air trapped at ceiling level can reach temperatures in excess of 30°C.

  • Customised for each home requirement.
  • Utilises the excess heat trapped at ceiling level and transfers it around your home.
  • Keeps your home warmer and drier through continuous flowing air reducing condensation/dampness.
  • Thermostatic or manually controlled.
  • Uses fully insulated ducting to reduce heat loss.
  • Diffusers at each outlet can be adjusted for flow
  • Low power consumption
  • One to four room systems
  • Fresh air system for summer utilising your existing warm air transfer system, bringing fresh air in from outside helping to cool your home

Notes:

  • We can customise to suit your requirements - please contact us
  • Please talk to us before using in conjunction with a heat pump
  • It is recommended to use a registered electrician to wire the fan and thermostat switch

Kits Available

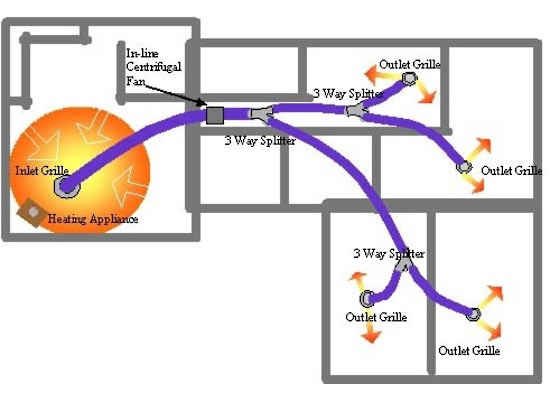

4 Room Heat Transfer Kit

Four Room Heat Transfer Kit

Kit Contains:

  • in-line centrifugal fan
    (200mm, FID 210 l/s)
  • inlet grille, four outlet grilles
  • 3x 3way splitters
  • insulated duct (one length 200mm x 6m, two lengths 200mm x 3m, plus four lengths 150mm x 3m)
  • duct tape (2x 6m)

3 Room Heat Transfer Kit

Three Room Heat Transfer Kit

Kit Contains:

  • in-line centrifugal fan
    (200mm, FID 210 l/s)
  • inlet grille
  • outlet grille x3
  • 4way splitter
  • insulated duct (three lengths 150mm x 3m, plus two lengths 200mm x3m)
  • duct tape (6m)

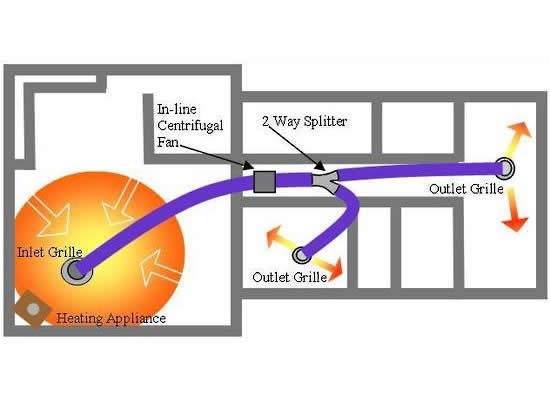

2 Room Heat Transfer Kit

Two Room Heat Transfer Kit

Kit Contains:

  • in-line centrifugal fan
    (150mm, FID 128 l/s)
  • inlet grille
  • outlet grille x2
  • 3way splitter
  • insulated duct (four lengths 150mm x 3m)
  • duct tape (6m)

1 Room Heat Transfer Kit

One Room Heat Transfer Kit

Kit Contains:

  • in-line axial fan (150mm, FID 83 l/s)
  • inlet grille
  • outlet grille
  • insulated duct (two lengths 150mm x 3m)
  • duct tape(3m)

Heat Transfer Accessories

  • Thermostat with on/off switch
  • Speed controller for 1 & 2 rooms
  • 3 speed switch for 3&4 rooms
  • 150mm Diameter Ceiling Outlet Grille
  • 150-150-150 splitter
  • 150dia. Duct Joining Collar
  • 200dia. Duct Joining Collar
  • 150dia. Ins. Duct 3m
  • 200dia. Ins. Duct 3m
  • 150dia. Balancing Damper
  • 200dia. Balancing Damper
  • Duct Tape
